Viton is a versatile, inert alternative material for O-rings, gaskets, and other sealing components. The material is well-regarded for its resistance to chemical damage and its stability in high-temperature and high-pressure environments. Available formulations of Viton offer varying degrees of hardness, enabling its use in products that meet food-grade or medical-grade standards, as well as compounds that can withstand explosive decompression. This versatility makes Viton an ideal choice for fabricating commercial and industrial O-rings that offer long-term reliability in extreme conditions.

Viton Properties

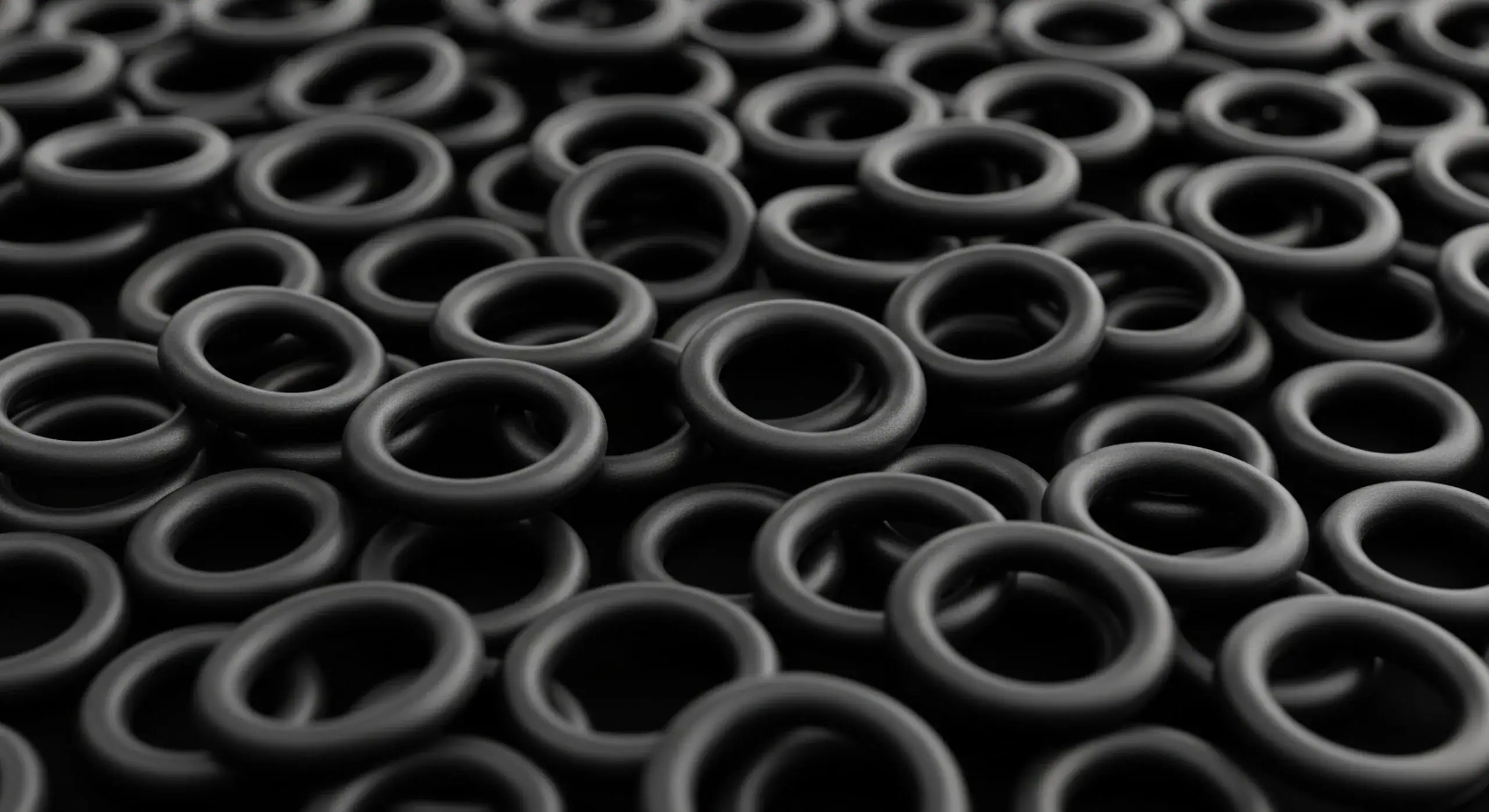

black o rings on black backgroundViton is a synthetic rubber elastomer that can be easily molded or extruded into precise shapes and forms for a wide variety of sealing applications. It typically comes in standard brown and black colors. The material has a hardness range of 50-95 on the durometer hardness scale, with a typical range of 70-75 Shore A. Viton is also inert and retains its properties at temperatures ranging from -20°F to 400°F.

Along with these core characteristics, Viton also resists physical and chemical damage and features excellent tensile strength, ultimately improving its lifespan. It also offers good-to-excellent tensile strength due to its chemical makeup and the high density of the material. Viton’s density is around 1800 kg/m3, compared to other popular rubbers that typically range from 1010 to 1520 kg/m3.

Viton Sealing Device Compatibility

As with all sealants, it’s important to select a material that balances with any extreme environmental factors, harsh chemicals, and other relevant application factors. Viton offers the following resistances:

Physical Properties

  • Abrasion resistance: Good
  • Dynamic resistance: Good-to-excellent
  • Set resistance: Good-to-excellent
  • Tear resistance: Fair-to-good
  • Electrical properties: Fair

Chemical Properties

  • Acid resistance: Excellent
  • General chemical resistance: Good
  • Impermeability: Good
  • Oil resistance: Excellent

Environmental Properties

  • Ozone resistance: Excellent
  • Weather resistance: Excellent
  • Water steam resistance: Fair-to-good

Temperature Properties

  • Cold resistance: Fair
  • Heat resistance: Excellent
  • Flame resistance: Excellent

Viton Sealing Device Applications

Viton O-rings, gaskets, and other sealing devices can be used in a wide range of industrial and commercial applications. These include applications with unique environmental factors, such as:

Viton Sealing Device Applications
  • Vacuumed environments: Viton withstands high pressures and explosive decompression forces, making it ideal for use in many automotive and aerospace systems.
  • Contact with most acids and chemicals: While Viton isn’t suitable for use with acetone and some organic acids, it can withstand solvents, petroleum-based products, and more. Viton gaskets are frequently used in chemical processing centers and pharmaceutical manufacturing plants. It also handles contact with halogenated hydrocarbons, oil, silicone oil, petroleum fuels, and grease for seals in automotive vehicles, aeronautics equipment, and industrial equipment systems.
  • Di-ester lubricants. Viton may be used with di-ester lubricants, which allows Viton O-rings and seals to function well in high-performance systems that require lubrication.
  • Vulcanized. Viton is common material for vulcanized or spliced o-rings. These are ideal for static sealing and are advantageous in this application for molded o-rings which tend to have non-standard measurements.

Some specific applications for Viton O-rings and seals include:

  • Pneumatic seals
  • Bearing isolators that create a barrier against lubricant leaks and contamination
  • Non-contact labyrinth and clearance seals
  • Axial static seals
